S/4HANA Cloud

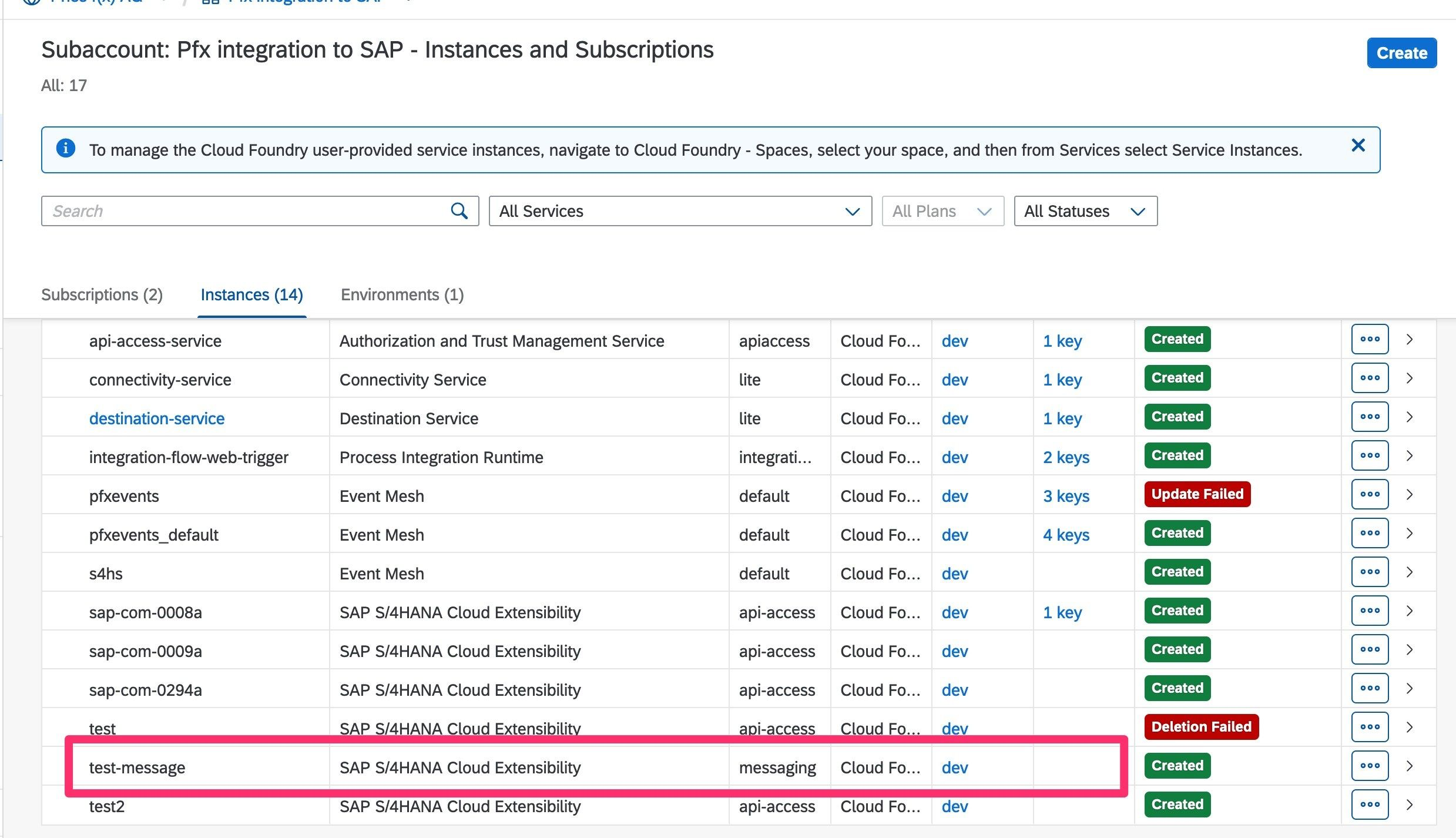

  1. Create SAP S/4HANA Cloud Extensibility instance from BTP from JSON config:

    {
  "options": {
    "management": true,
    "messagingrest": true,
    "messaging": true
  },
  "rules": {
    "topicRules": {
      "inboundFilter": [
        "${namespace}/#"
    ]
    }
  },
  "emname": "S4P",
  "namespace": "sap/S4HANAOD/S4P"
}

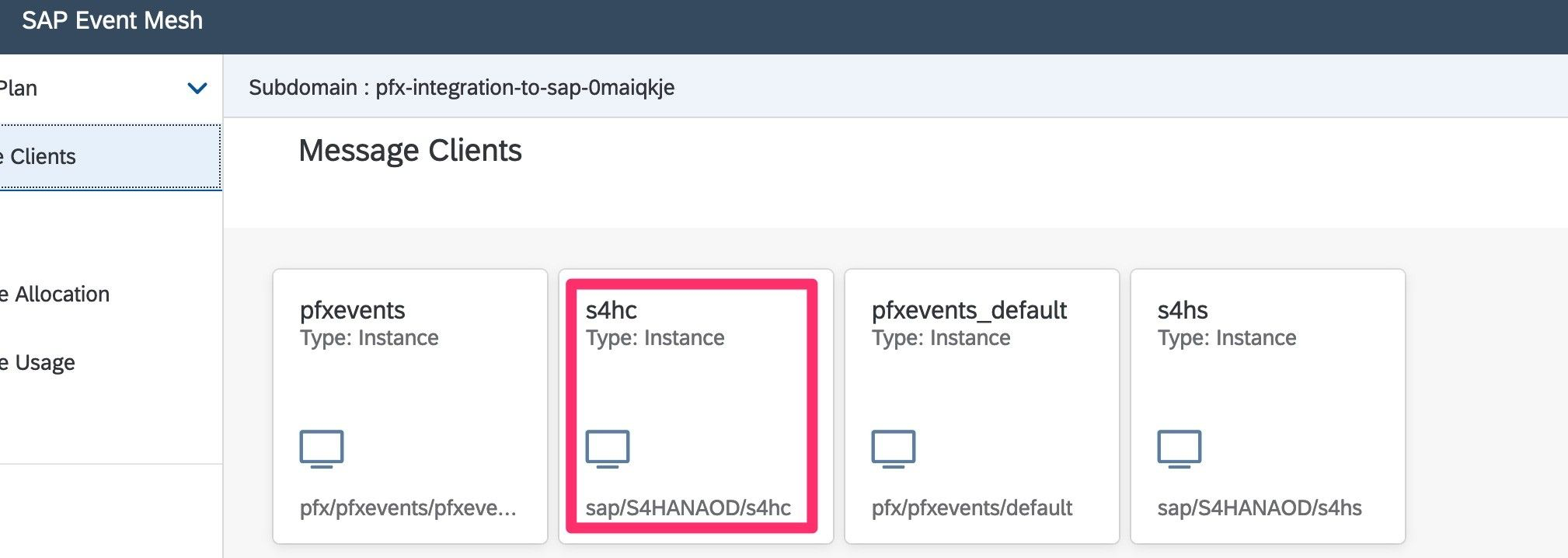

  2. Check in Event Mesh that there is an instance created automatically.

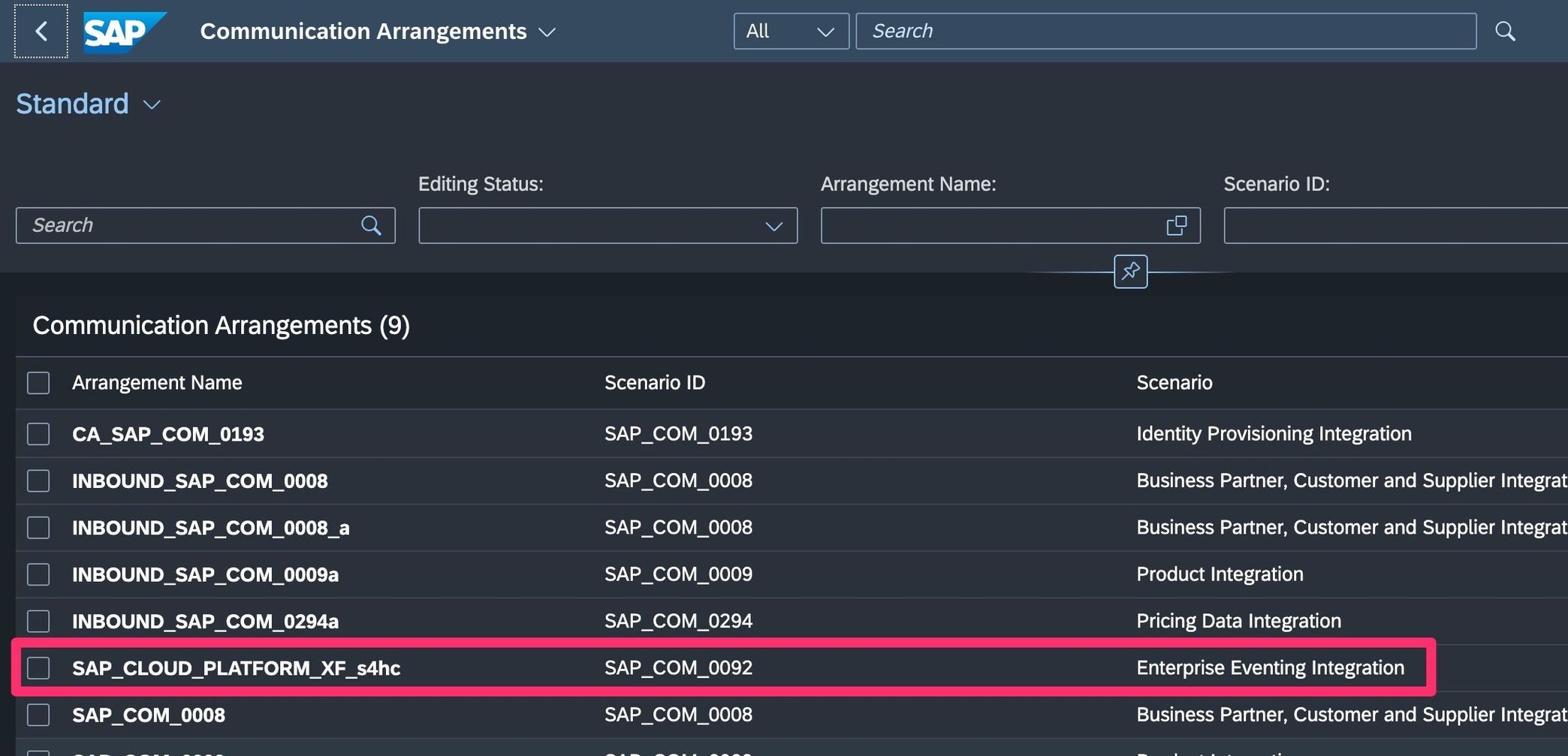

  3. Check in S/4 HANA Cloud that the communication arrangement SAP_COM_0092 is created automatically.

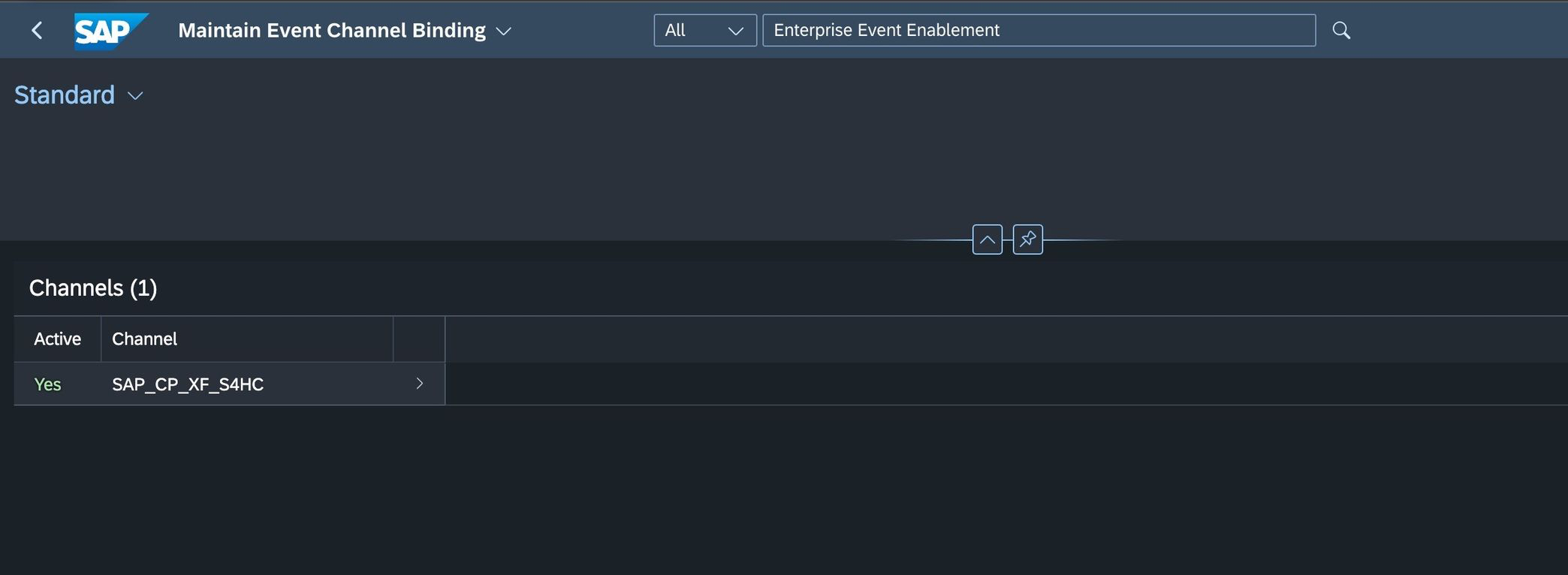

  4. Open Enterprise Event Enablement app (if not available, check the comment for 1NN settings below). A channel is created automatically.

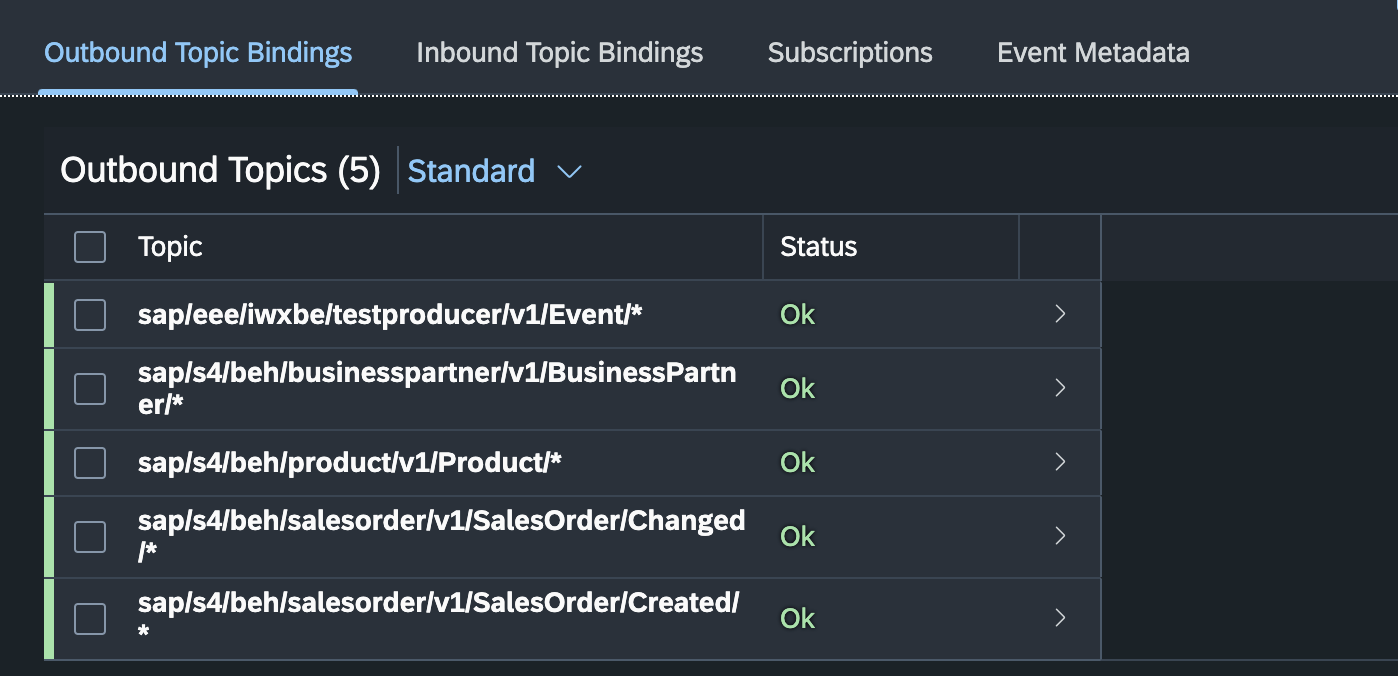

  5. Create required events in the channel.



  6. Create an Event Mesh instance for subscribing to these events in BTP using the config below:

    {
    "version": "1.1.0",
    "emname": "s4hs",
    "namespace": "sap/S4HANAOD/s4hs",
    "resources": {
        "units": "10"
    },
    "options": {
        "management": true,
        "messagingrest": true,
        "messaging": true
    },
    "rules": {
        "topicRules": {
            "subscribeFilter": [
                "${namespace}/*",
                "sap/S4HANAOD/s4hc/*"
            ]
        },
        "queueRules": {
            "subscribeFilter": [
                "${namespace}/*"
            ]
        }
    }
}

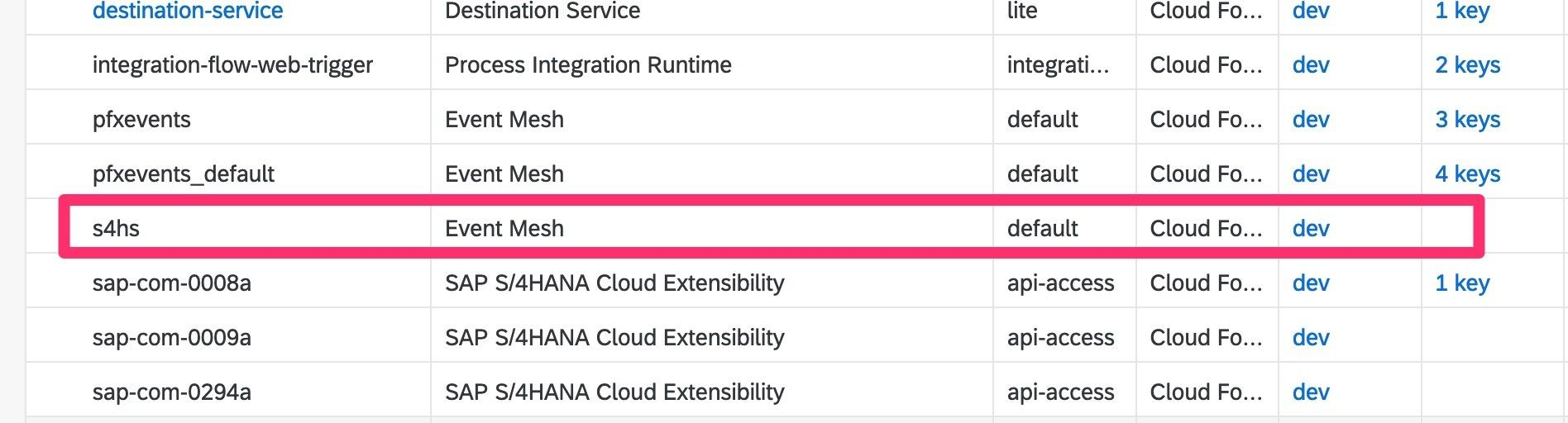

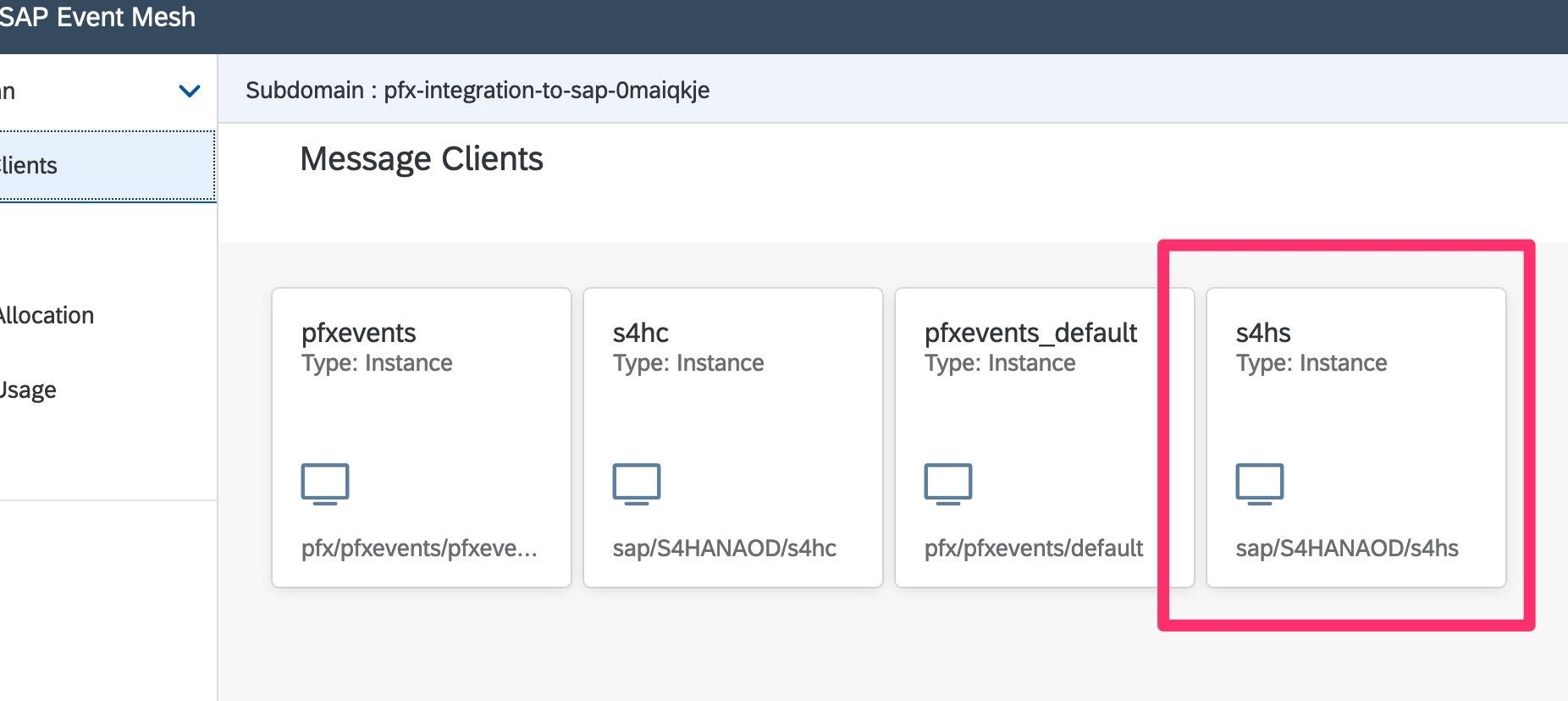

  7. Check in Event Mesh that there is an instance created.

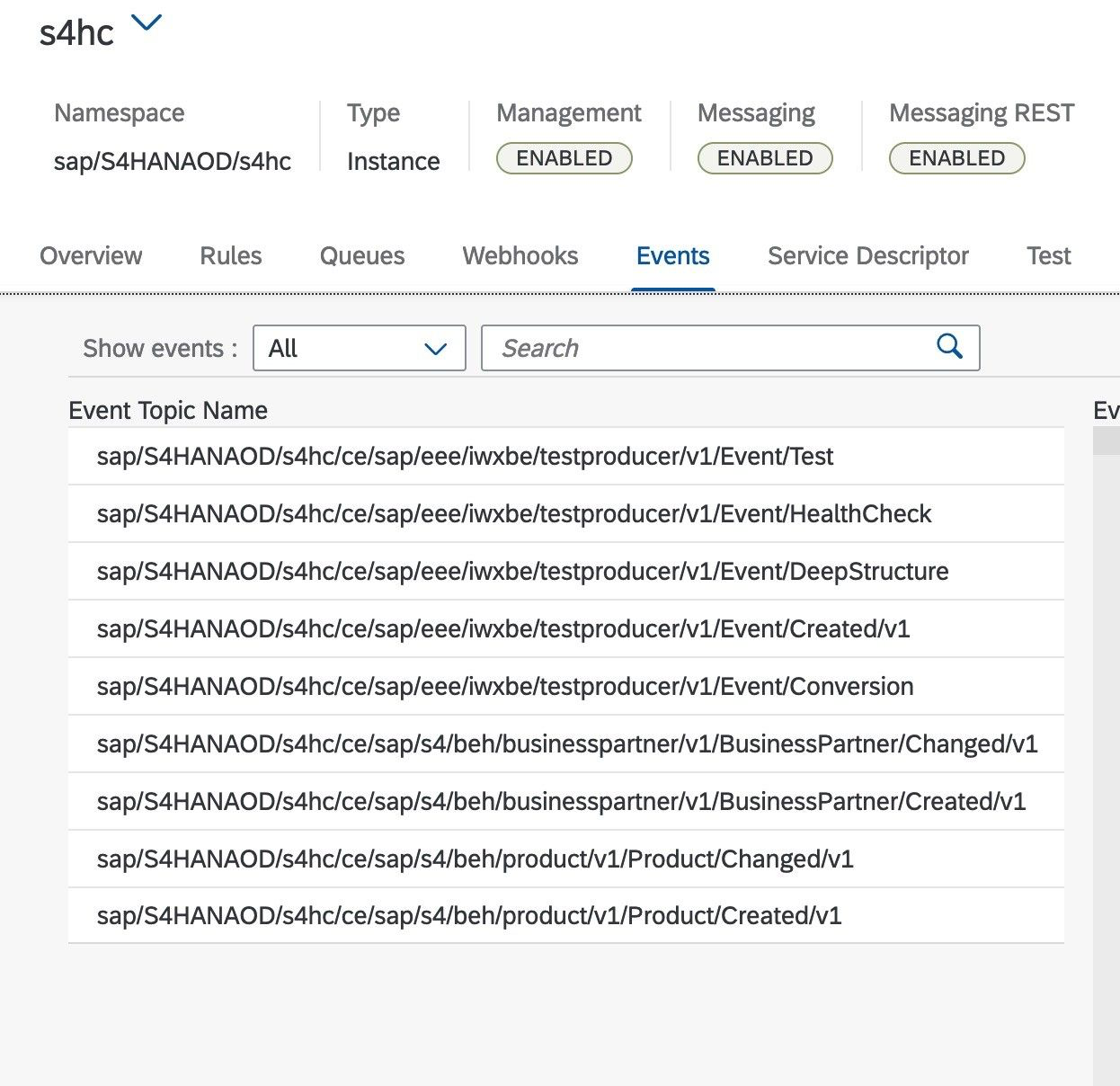

  8. Check the list of events in s4hc instance created by cloud extensibility in step 1 and 2.

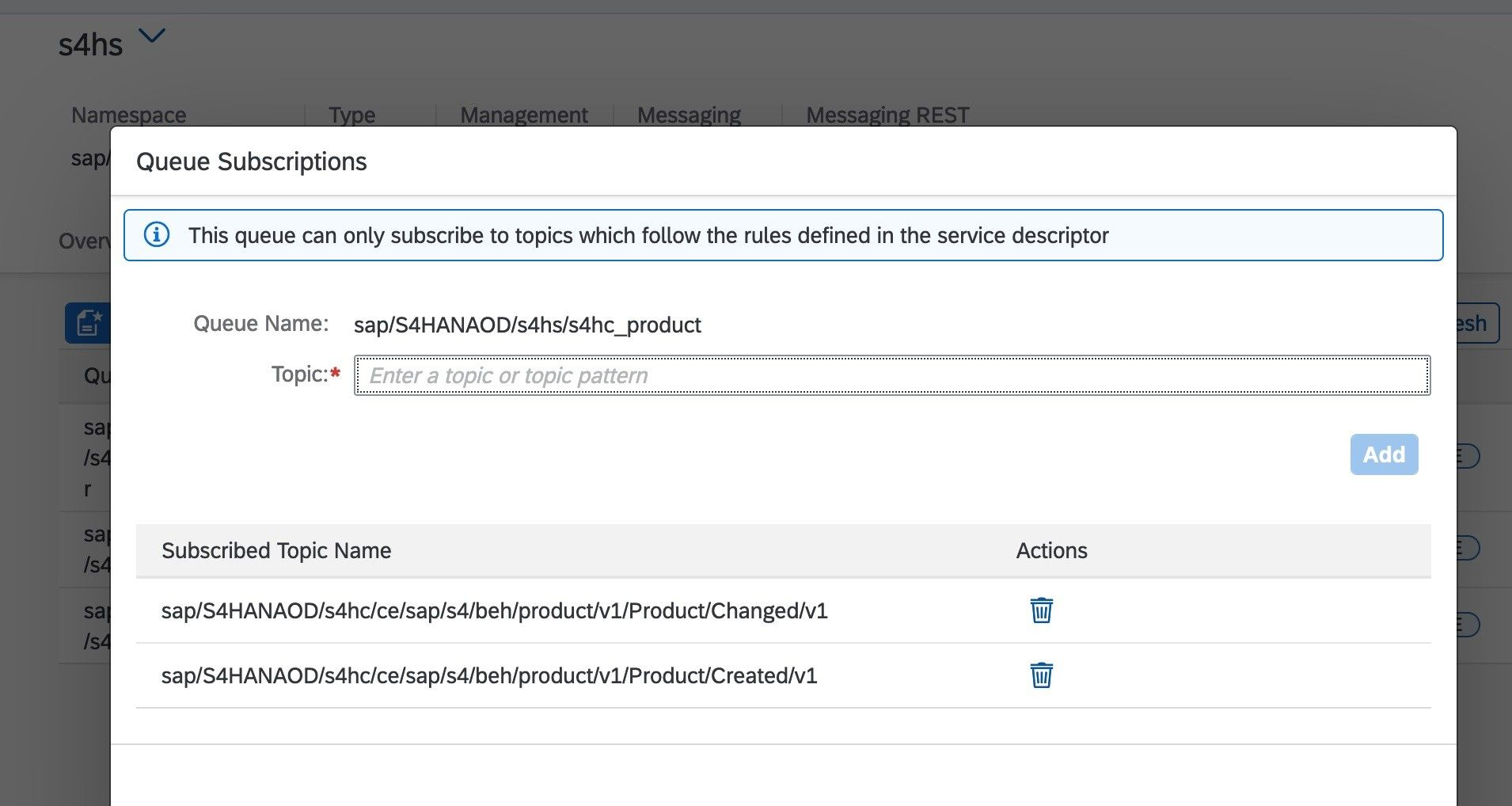

  9. Create queues in the new Event Mesh instance created in steps 6 and 7 to subscribe to the above events.


Refer to SAP documentation for more information: https://blogs.sap.com/2023/06/22/enable-the-events-from-s-4hana-cloud-to-event-mesh/
