Icons in Cells | Pricefx Knowledge Base

Since version 14.0

When using the ResultMatrix to display your data, you may want to use the withFormatting method for adding icons to the cells. You can use the entire Unicode Set to define your icons.

Examples

Basic Definition

Groovy

def resultMatrix = api.newMatrix("Net Margin %")

resultMatrix.addRow(
        resultMatrix.styledCell("10").withFormatting("▲ {}%"),
)

/*
- ▲ icon is used as a prefix
- {} is a placeholder for the actual value of the cell
- % is a suffix
*/

return resultMatrix

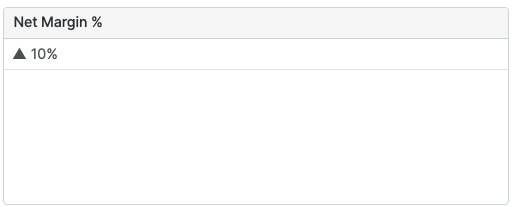

Result

Alternate Definition

You can use also the Java Unicode notation for definition of the Unicode icon.

Groovy

def resultMatrix = api.newMatrix("Net Margin %")

resultMatrix.addRow(
        resultMatrix.styledCell("10").withFormatting("\u25B2 {}%"),
)

/*
- \u25B2 defines an icon that is used as prefix
- {} is a placeholder for the actual value of the cell
- % is a suffix here
*/

return resultMatrix

Customer Health Example

Groovy

def resultMatrix = api.newMatrix("Customer Name","Customer Id","Health Score Last 12M", "Margin %")

resultMatrix.addRow(
        resultMatrix.styledCell("Nobel Hobel AG", "green", "none", "bold", "left").withFormatting("▲ {}"),
        resultMatrix.styledCell("CD-00027", "black", "none", "regular"),
        resultMatrix.styledCell("+75").withFormatting("▲ {}").withCSS("color: green"),
        resultMatrix.styledCell("40.83").withFormatting("{} %"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Ardex", "green", "none", "bold", "left").withFormatting("▲ {}"),
        resultMatrix.styledCell("CD-00029", "black", "none", "regular"),
        resultMatrix.styledCell("+75").withFormatting("▲ {}").withCSS("color: green"),
        resultMatrix.styledCell("40.62").withFormatting("{} %"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("MX Meat Inc", "red", "none", "bold", "left").withFormatting("▼ {}"),
        resultMatrix.styledCell("CD-00146", "black", "none", "regular"),
        resultMatrix.styledCell("+50").withFormatting("▷ {}").withCSS("color: orange"),
        resultMatrix.styledCell("48.96").withFormatting("{} %"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Soupo AG", "red", "none", "bold", "left").withFormatting("▼ {}"),
        resultMatrix.styledCell("CD-00006", "black", "none", "regular"),
        resultMatrix.styledCell("+43").withFormatting("▷ {}").withCSS("color: orange"),
        resultMatrix.styledCell("0.38").withFormatting("{} %"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Zumtoschwein KG", "red", "none", "bold", "left").withFormatting("▼ {}"),
        resultMatrix.styledCell("CD-00147", "black", "none", "regular"),
        resultMatrix.styledCell("+33").withFormatting("▼ {}").withCSS("color: red"),
        resultMatrix.styledCell("53.54").withFormatting("{} %"),
)

return resultMatrix

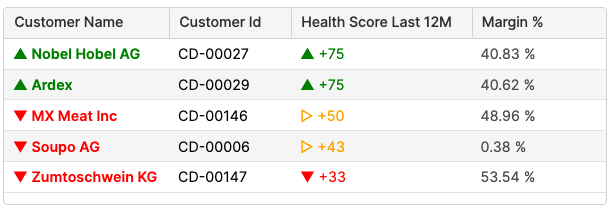

Result

Category Example

Groovy

def resultMatrix = api.newMatrix("Category Name","# Products","Quantity", "Margin %")

resultMatrix.addRow(
        resultMatrix.styledCell("Low", "black", "none", "bold", "left").withFormatting("1️⃣ {}"),
        resultMatrix.styledCell("30", "black", "none", "regular"),
        resultMatrix.styledCell("16,815"),
        resultMatrix.styledCell("39.386").withFormatting("{} %"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Normal", "black", "none", "bold", "left").withFormatting("2️⃣️ {}"),
        resultMatrix.styledCell("31", "black", "none", "regular"),
        resultMatrix.styledCell("67,000"),
        resultMatrix.styledCell("40.656").withFormatting("{} %"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("High", "black", "none", "bold", "left").withFormatting("3️⃣️ {}"),
        resultMatrix.styledCell("5", "black", "none", "regular"),
        resultMatrix.styledCell("17,304"),
        resultMatrix.styledCell("42.522").withFormatting("{} %"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Very High", "black", "none", "bold", "left").withFormatting("4️⃣️ {}"),
        resultMatrix.styledCell("3", "black", "none", "regular"),
        resultMatrix.styledCell("14,469"),
        resultMatrix.styledCell("41.798").withFormatting("{} %"),
)

return resultMatrix

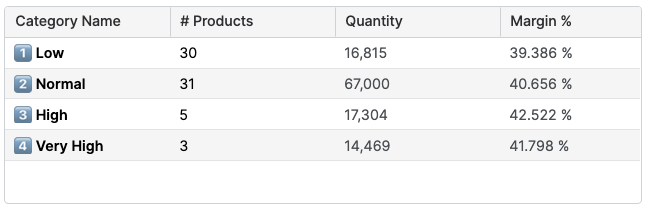

Result

Icon Summary Example

Groovy

def resultMatrix = api.newMatrix("Name","Type","Icon")

resultMatrix.addRow(
        resultMatrix.styledCell("Increase", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Trends", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("▲").withCSS("color: green"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Constant", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Trends", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("▷"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Decrease", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Trends", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("▼").withCSS("color: red"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Top", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Aggregation", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("\uD83D\uDC4D"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Worst", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Aggregation", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("\uD83D\uDC4E\uD83C\uDFFC"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Good", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Health", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("✅"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Bad", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Health", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("❌"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Low", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Category", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("1️⃣"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Normal", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Category", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("2️⃣️"),
)

resultMatrix.addRow(
        resultMatrix.styledCell("High", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Category", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("3️⃣️ "),
)

resultMatrix.addRow(
        resultMatrix.styledCell("Low", "black", "none", "bold", "left"),
        resultMatrix.styledCell("Category", "black", "none", "regular"),
        resultMatrix.styledCell("").withFormatting("4️⃣️"),
)

return resultMatrix

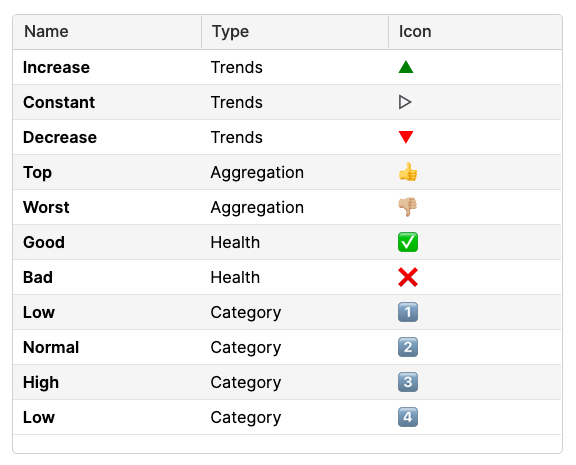

Result
