Fetch (SAP IS Adapter)

This operation allows users to fetch records based on a filter.

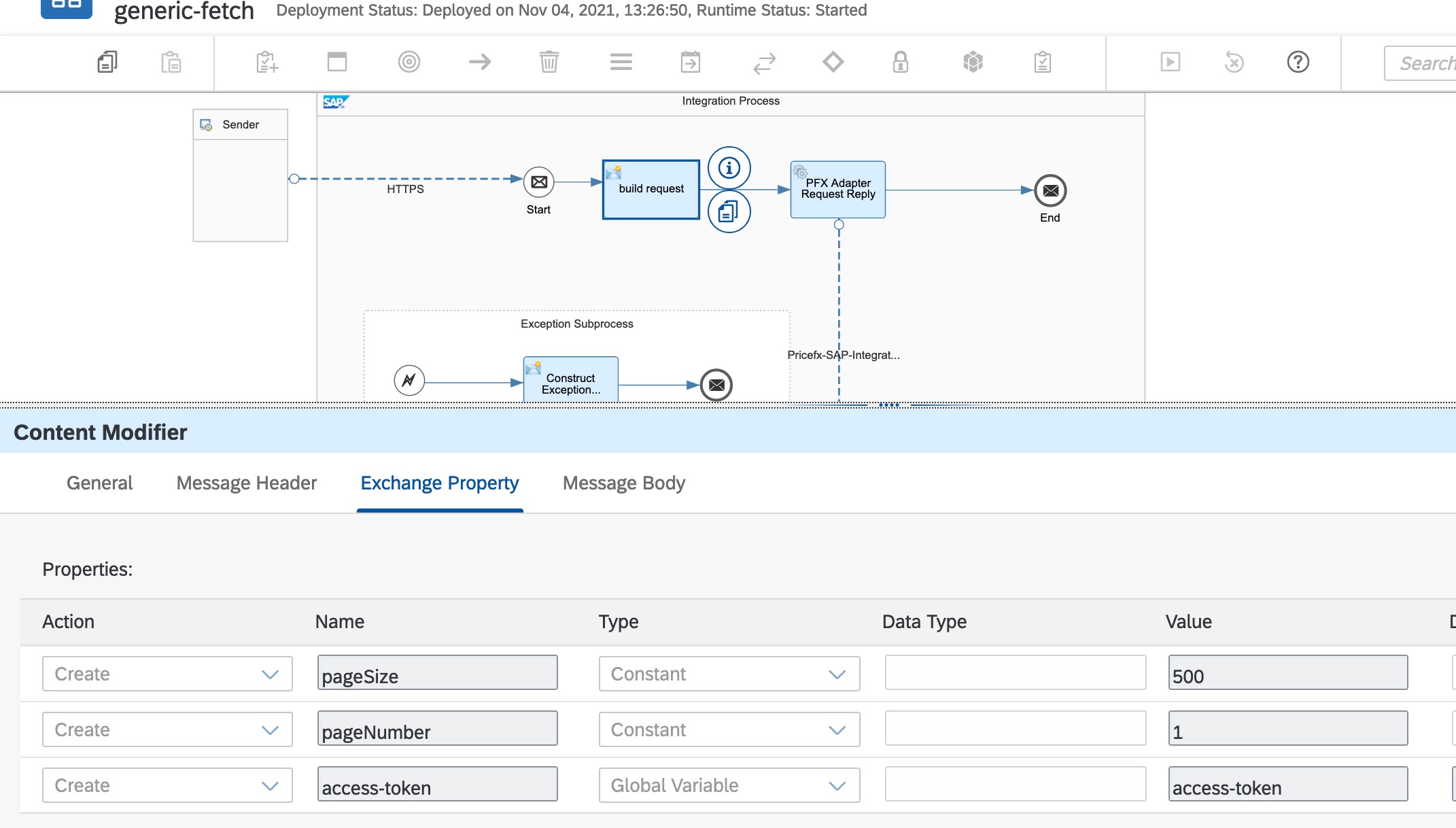

  1. Configure the exchange property in Content Modifier:

    • pageSize – Maximum number of records retrieved in one Get operation. The default is 500. It can be overridden to a value smaller than 500.

    • pageNumber – Number of results pages retrieved in one Get operation. The default is 1.

    • access-token – The token can be retrieved from the global variable set by a separate token store integration flow. See Authentication (SAP IS Adapter).

      fetch prop.jpg

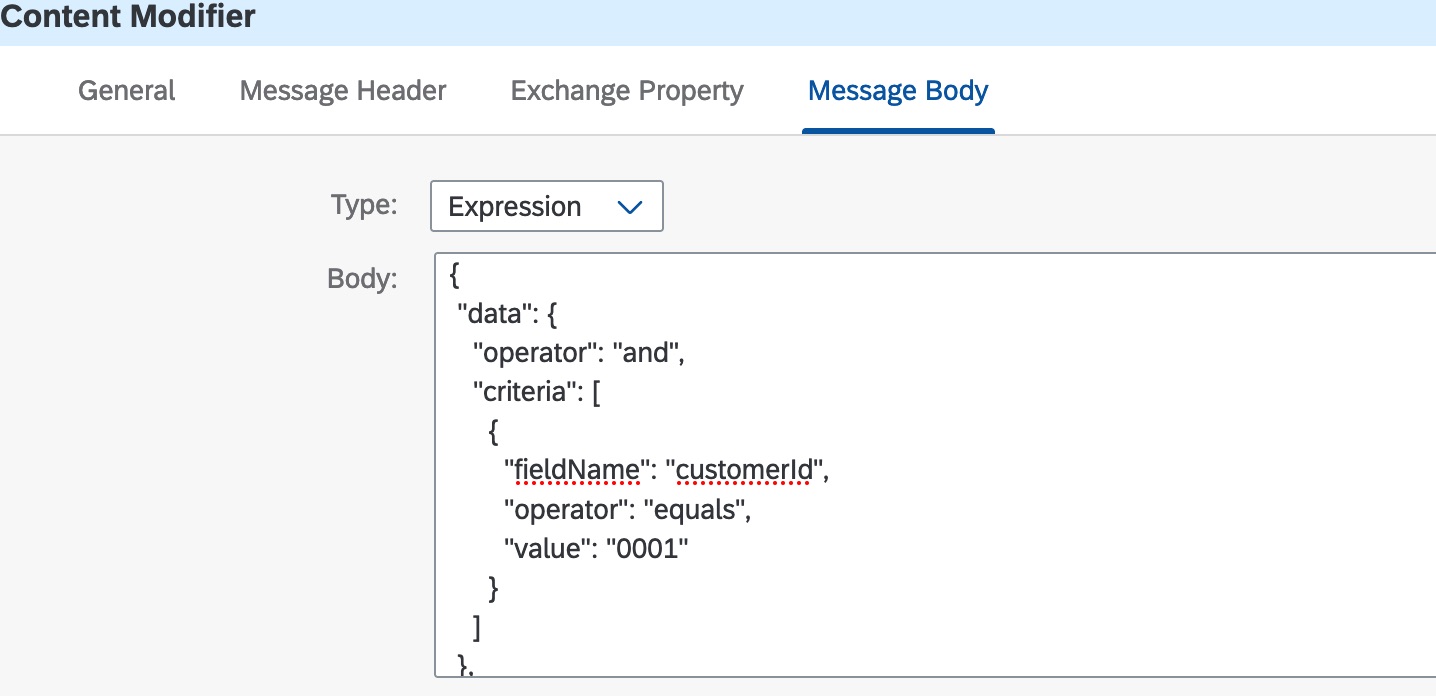

  2. Configure the message body in Content Modifier. The full JSON schema can be found in the “Sample Artifacts for SAP S/4HANA Integration with Pricefx” integration package from SAP API Business Hub. See Pricefx to SAP S/4HANA Schemas.

    fetch msg.jpg
    Sample Fetch Request
    JSON
     {
  "data": {
    "operator": "and",
    "criteria": [
      {
        "fieldName": "customerId",
        "operator": "equals",
        "value": "0001"
      }
    ]
  },
  "sortBy": [
    "customerId"
  ],
  "resultFields": [
    "customerId","name"
  ]
}

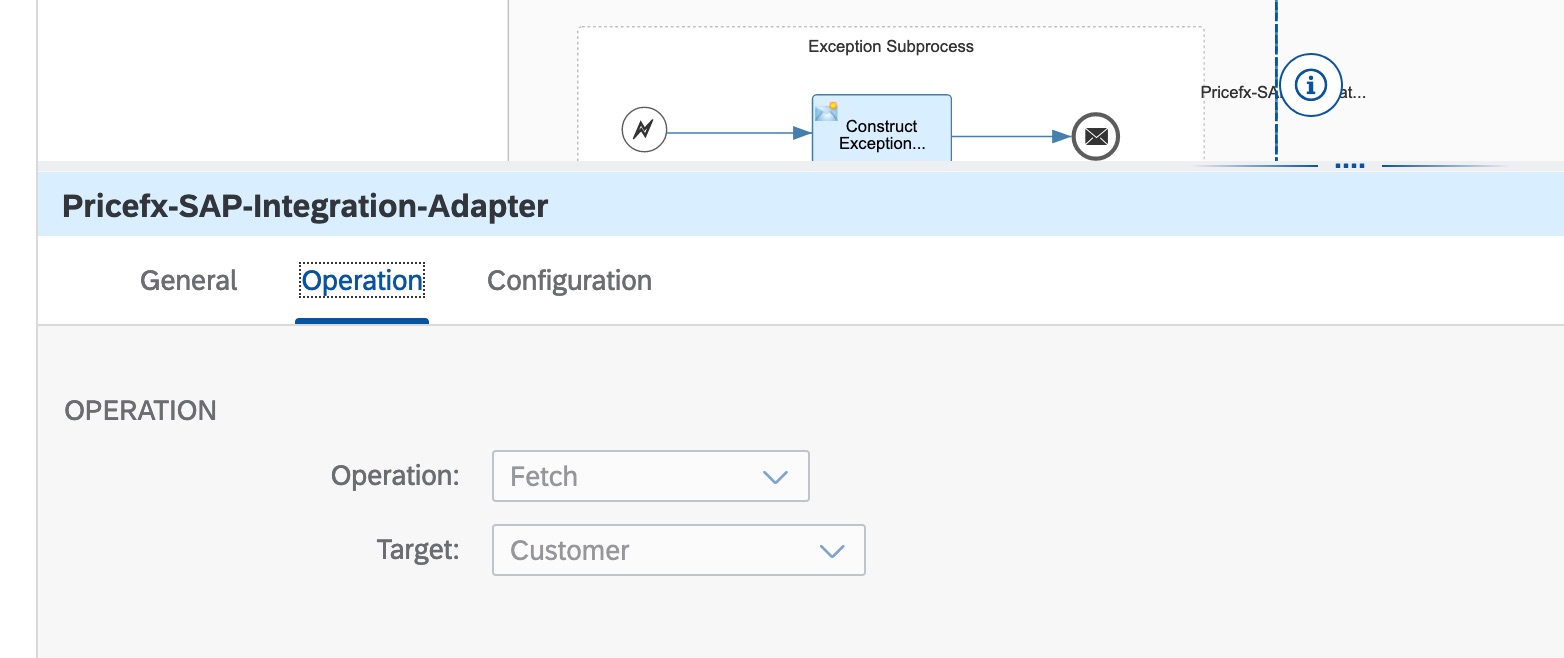

  3. In the Adapter configuration, select operation and target type.

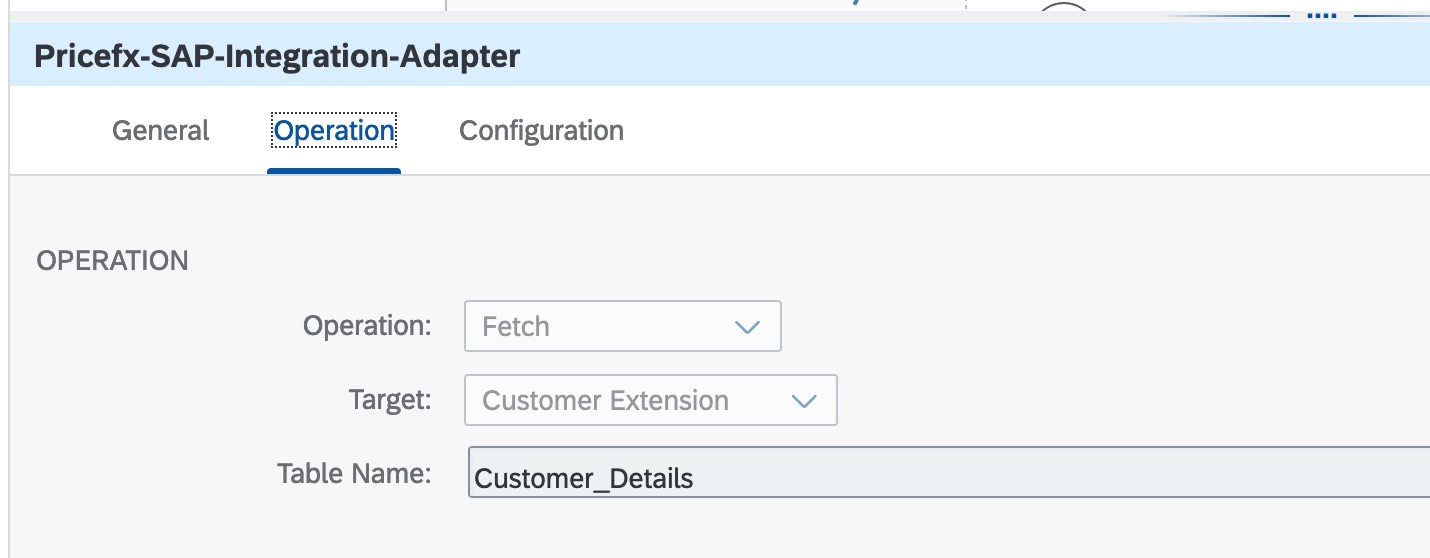

  4. For Product Extensions, Customer Extensions, Data Source, Datamart and Data Feeds, specify the name of the table as well.

    fetch cx.jpg

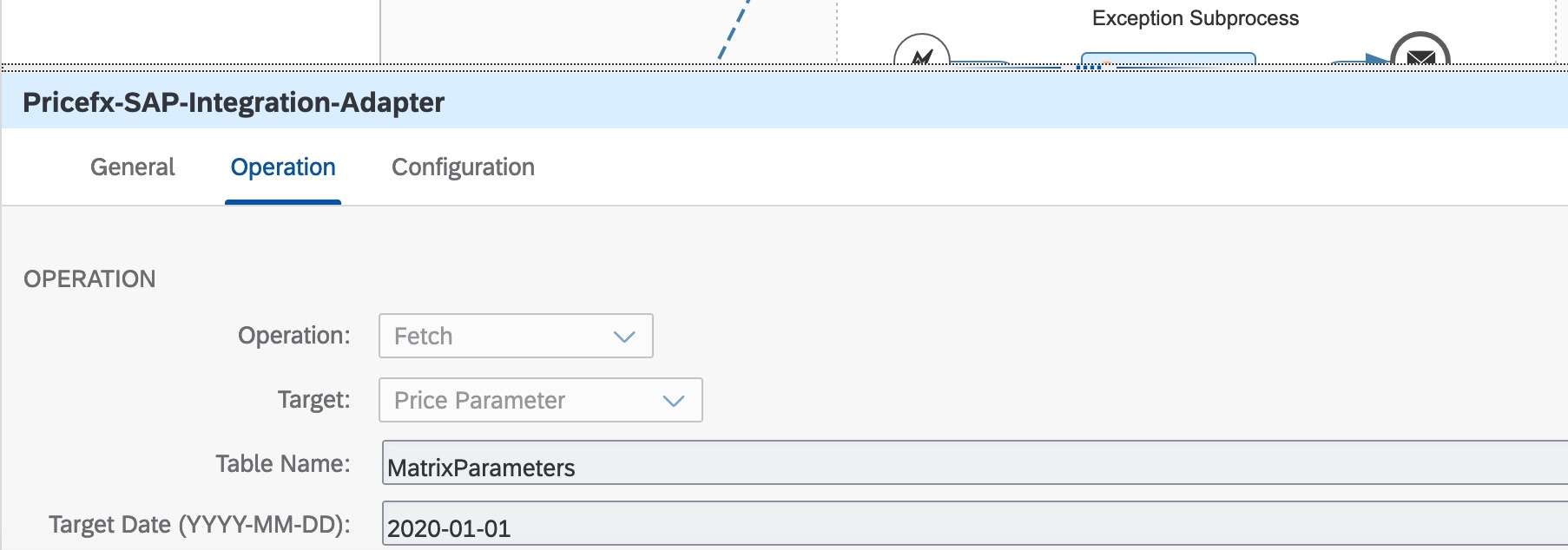

  5. For Price Parameters, specify the name of the table and Target Date as well.

    fetch pp.jpg

Supported Filters

See Appendix: Supported Operators in Criteria.

Response Message

The full JSON schema can be found in the “Sample Artifacts for SAP S/4HANA Integration with Pricefx” integration package from SAP API Business Hub. See Pricefx to SAP S/4HANA Schemas.
