BackEndAction Logic

One of the action you can add to ResultMatrix is a button which will navigate users to another page to perform an action with the list of items selected from the matrix.

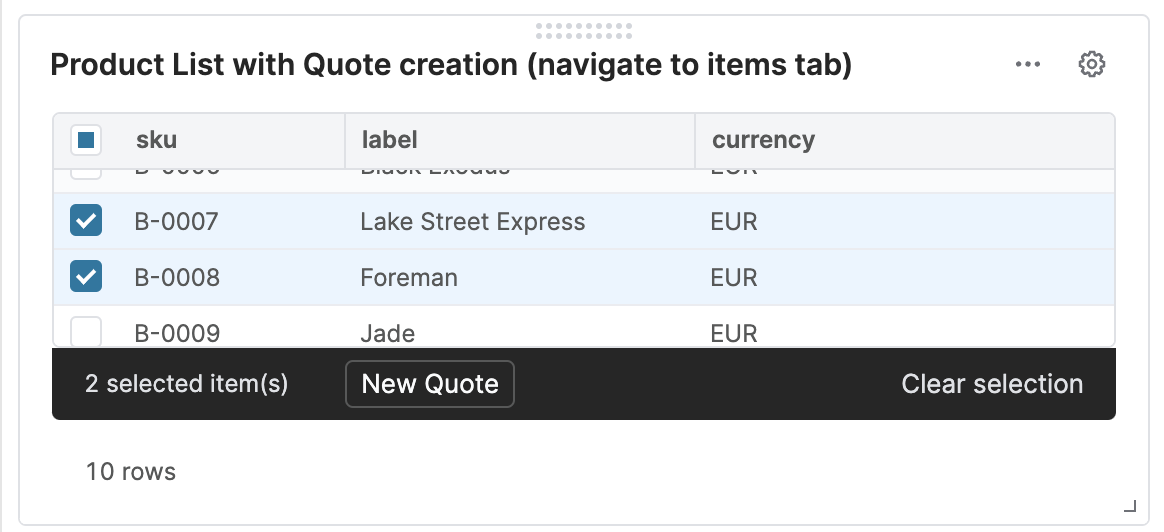

Example of a “New Quote” action button for selected items in Result Matrix

To perform the action, there has to be a definition of the action – it is either a deep link or a context link. The BackEndAction logic is called to retrieve the definition.

Logic API

  • Logic Nature: generic (null)

    • Logic Type: Calculation/Pricing

  • Execution Types

    • Standard – Logic is only executed via normal execution.

  • Information provided to the logic

  • Expected logic execution outcome

    • The first visible element (with Display Mode = Everywhere) is expected to return a Map with definition of the action link. It can be either deep link or context link. See the code sample below.

    • If the logic fails with an exception:

      • The exception from the logic is displayed as an error notification.

      • Redirection to another page will not happen.

      • The frontend can display an error which was set via withFailureMessage(). This message will override the exception message returned from the logic.

    • In the logic you can use yellowAlert(), redAlert(), or criticalAlert() to display notifications.

Code Samples

Example of BackEndAction logic:

Groovy
def products = api.inputMatrix('productsDataSet', 'sku')

return [
  targetPage     : AppPages.QC_NEW_QUOTE,
  targetPageState: [
    targetPageItems: products.collect { it -> return it.sku },
    targetPageTab: 'items'
]


Example of a logic to build the Result Matrix which creates the action button calling the BackEndAction logic:

Groovy
def products= api.find("P", 0, 10, null, ["sku", "label", "currency"])

def resultMatrix = api.newMatrix().withColumnFormats([
        "sku"  : FieldFormatType.TEXT,
        "label":FieldFormatType.TEXT,
        "currency": FieldFormatType.TEXT
]).withRows(products);

resultMatrix.rowSelectionBackEndAction("productsDataSet")
        .withLogicName("BackEndActionLogic")
        .withColumns("sku")
        .withButtonLabel("New Quote")

return resultMatrix

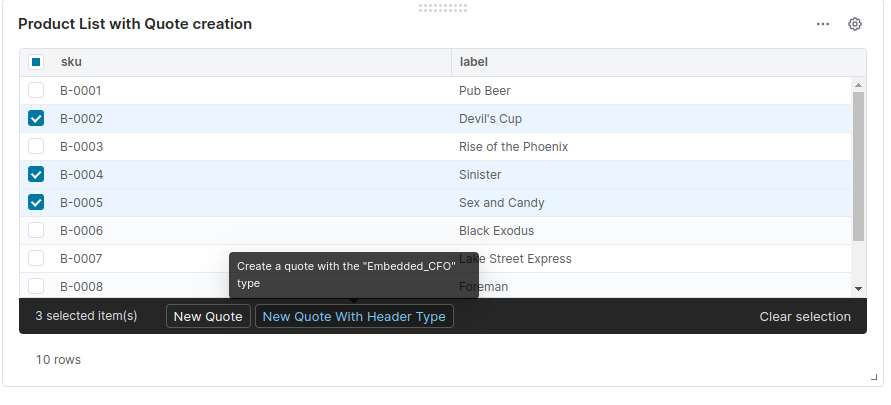

Example of result matrix with multiple buttons, error handling and passing additional parameters.


Result matrix:

Groovy
def products = api.find("P", 0, 10, null, ["sku", "label", "currency"])

def resultMatrix = api.newMatrix().withColumnFormats([
  "sku"     : FieldFormatType.TEXT,
  "label"   : FieldFormatType.TEXT
]).withRows(products);

resultMatrix.rowSelectionBackEndAction("selectedProducts")
  .withLogicName("BackEndActionLogic_Example2")
  .withColumns("sku")
  .withButtonLabel("New Quote")

resultMatrix.rowSelectionBackEndAction("selectedProducts")
  .withLogicName("BackEndActionLogic_Example2")
  .withColumns("sku")
  .withButtonLabel("New Quote With Header Type")
  .withButtonTooltip('Create a quote with the "Embedded_CFO" type')
  .withFailureMessage('Error message displayed if the logic throws an exception')
  .withSuccessMessage('Success message')
  .addFormulaInput('quoteType', 'Embedded_CFO')
  .addFormulaInput('quoteLabel', "New Embedded_CFO quote!")

return resultMatrix;

Code of BackEndActionLogic_Example2:

Groovy
// Selected rows in result matrixdef items = api.inputMatrix('selectedProducts', 'sku')

// Quote type passed in .addFormulaInput('quoteType', 'Embedded_CFO')def quoteType = api.input('quoteType')

// Quote label passed in .addFormulaInput('quoteLabel', "New Embedded_CFO quote")def quoteLabel = api.input('quoteLabel')

if (quoteType) {
  return [
    targetPage     : AppPages.QC_NEW_QUOTE,
    targetPageState: [
      targetPageFields: [
        label: quoteLabel,
        expiryDate: "2023-12-24"      ],
      targetPageEntityType: quoteType,
      targetPageItemsInputs: items,
      targetPageTab: 'items'    ]
  ]
} else {
  [
    targetPage     : AppPages.QC_NEW_QUOTE,
    targetPageState: [
      targetPageItemsInputs: items,
      targetPageTab: 'items'    ]
  ]
}
