Architecture Components Details (Rebate Management)

On this page, you will find a list of components used in the Rebate Manager package and their technical description.

Groovy Logic

Logics

Logic Name	Default Label	Description
RebateLogic	[RM] Rebate
RebateHeaderLogic	[RM] Header	Header logic for rebates. This should be the default logic for "Default RA Header logic". If you deploy the package to Pricefx older than 8.0, go to Administration > Configuration > RebateManager > RebateManager General Settings and for the 'On creating new Rebate Agreement' option select "Calculate new Agreement immediately".
ProductFilter_Logic	[RM] Product Filter
CustomerFilter_Logic	[RM] Customer Filter
RebateRecordCalculationFeeder	[RM] Rebate Record Calculation Feeder	Finds and calculates rebate records.
RebateAllocationFeeder	[RM] Allocation Feeder
RebateAllocation	[RM] Allocation
RebateAgreementReport	[RM] Rebate Agreement Report	Logic supporting a report of the same name.
MonthlyRebateReport	[RM] Monthly Rebate Report	Logic supporting a report of the same name.
MonthToDateRebateReport	[RM] Month To Date Rebate Report	Logic supporting a report of the same name.
YearToDateRebateReport	[RM] Year To Date Rebate Report	Logic supporting a report of the same name.
RM_ConditionTypeFilter	[RM] Condition Type Filter	Filters only those condition types which are suitable for the rebate agreement.
Rebate_ForecastType_Configurator	[RM] Forecast Type Configurator
RM_RebateAgreement	[RM] Rebate Agreement	Workflow logic defining the rebateagreement workflow type for rebate agreements.
RM_AgreementRecord	[RM] Agreement Record	Workflow logic defining the rebaterecord workflow type for rebate records.

Libraries

Library Name	Default Label	Description
RebateTypesLib	[RM] Condition Type Library	Defines all compensation types. When you have a new condition type, add a new element to this library to define functions for this condition type.
RebateProcessingLib	[RM] Processing Library	Provides common functions used in the rebate accelerator such as utilities for dates manipulation, inputs, record fetching, etc.

Rebate Type Attributes

(Rebate) Condition type attributes are needed for the rebate logic to calculate the rebate value and rebate records.

Attribute	Attribute Name	Default Label	Type	Description
formulaName	formulaName	Pricing logic	Drop-down list	Sets a logic to run the rebate. The value should be "RebateLogic".
attribute4	ConditionTypeName	Condition Type Name	Drop-down list	Sets a rebate type template for the current rebate type. The value is set to "Rebate Type Name" in the Company Parameters below.
attribute9	TargetFor	Target For	Drop-down list	Defines the target input for a period or annually. Values: "Payment Period", "Annual"
attribute11	DepositScheme	Deposit Scheme	Drop-down list	Defines the calculation type for a rebate value. Values: "Cumulative", "Non-Cumulative" If Target For = "Payment Period", users do not need to set a value for this attribute.
attribute3	PaymentPeriod	Payment Period	Drop-down list	Defines the payment period for a rebate type. Values: "Monthly", "Quarterly", "Semi-Annually", "Annually" If users do not set a value for this attribute, there is the "Payment Period" input in the rebate agreement with the same values.
attribute5	PayoutDays	Payout Days	Text field	Enter the number of days after the end date of the payment period when the user wants the payout.
attribute1	CustomerSelectionLevel	Customer Selection Level	Drop-down list	Values: Header Level – Shows the customer group input in the header of a rebate agreement. At a line item level, the customer group input will be disabled and will inherit this value. Line Item Level – Shows the customer group input in the header of a rebate agreement and line item. Users can change the customer group value in each line item.
attribute2	CustomerFilterLogic	Customer Filter Logic	Text field	Name of the Customer Filter Logic. Note: Customer Filter Logic must have the 'Nature' attribute set to "Customer Input Filter".
attribute15	ProductFilterLogic	Product Filter Logic	Text field	Name of the Product Filter Logic. Note: Product Filter Logic must have the 'Nature' attribute set to "Product Input Filter".
attribute10	SourceType	Source Type	Drop-down list	Values: DataMart DataSource
attribute6	BaseSource	Rebate Source Name	Text field	Name of the Data Source / Datamart.
attribute7	BaseFieldValue	Rebate Base Field Value	Text field	Name of the baseline field.
attribute14	BaseFieldQuantity	Rebate Base Field Quantity	Text field	Name of the quantity field.
attribute12	BaseFieldCustomer	Rebate Base Field Customer ID	Text field	Name of the customer ID field.
attribute13	BaseFieldProduct	Rebate Base Filed Product ID	Text field	Name of the product ID field.
attribute8	BaseFieldDate	Rebate Base Field Date	Text field	Name of the pricing date field.

Publishing Templates

Choose a Rebate Agreement and create for it four templates:

Name	Template Input Type	Preprocessing Logic
RA Templates	WORD	RebateAgreementReport
Last Month Rebate Report	WORD	MonthlyRebateReport
MTD Rebate Report	WORD	MonthToDateRebateReport
YTD Rebate Report	WORD	YearToDateRebateReport

Rebate Record Attributes

The following additional information is provided:

Attribute	Column Name	Default Label	Description
attribute1	CurrentBaselineValue	Current Baseline Value	Baseline value (sales or revenue) in this period
attribute2	CurrentRebate	Current Rebate	Rebate value in this period
attribute3	PayToID	Pay To ID	ID of a customer who will be paid
attribute4	CurrentBaselineQuantity	Current Baseline Quantity	Base line quantity in this period
attribute5	ForecastBaselineValue	Forecast Baseline Value	Forecast base line value in this period
attribute6	ForecastQuantity	Forecast Quantity	Forecast base line quantity in this period
attribute7	Forecast	Forecast	Forecast Rebate value in this period
attribute8	AccrualForecastBaselineValue	Accrual Forecast Baseline Value	Accrual Forecast base line value in this period
attribute9	AccrualForecast	Accrual Forecast	Accrual Forecast rebate value in this period
attribute10	TruesUp	Trues Up	= AccrualForecast - Forecast
attribute11	AccrualMethod	Accrual Method	Accrual Method name (agreement input)
attribute12	SalesGoalIncreasePct	Sales Goal Increase %	Sales goal increase percent value (agreement input)
attribute13	ForecastType	Forecast Type	Forecast types (agreement input) Values: Rebate forecast Accrual forecast
attribute14	AccrualForecastQuantity	Accrual Forecast Quantity	Accrual Forecast quantity in this period
attribute15	GeneralFilter	General Filter	Not used now, but defined in Accelerator
attribute16	Currency	Currency	Not used now, but defined in Accelerator
attribute17	CurrentCompensation	Current Compensation	Not used now, but defined in Accelerator

Company Parameters

RM_SC_ConditionTypes

This parameter saves the rebate condition type code and rebate type name. If an Accelerator supports a new rebate type, you need to add a new row in this table.

The value of the "Condition Type Name" column will be shown in "Condition Type Name" in the Rebate Agreement Types section.

Column Name	Description
Condition Type Code	Must match the element name in Groovy Library "RebateTypesLib".
Condition Type Name	Will be shown in "Condition Type Name".

RM_CustomerFieldMapping

This parameter maps the Customer Master attribute (source field) with the Datamart field name.

warning You should check it and update based on the Customer master structure in your partition.

Column Name	Description
Name	Attribute name (source field) in Customer Master
Datamart Field Name	Map with a field name in Datamart
Description	Description of this mapping (if any)

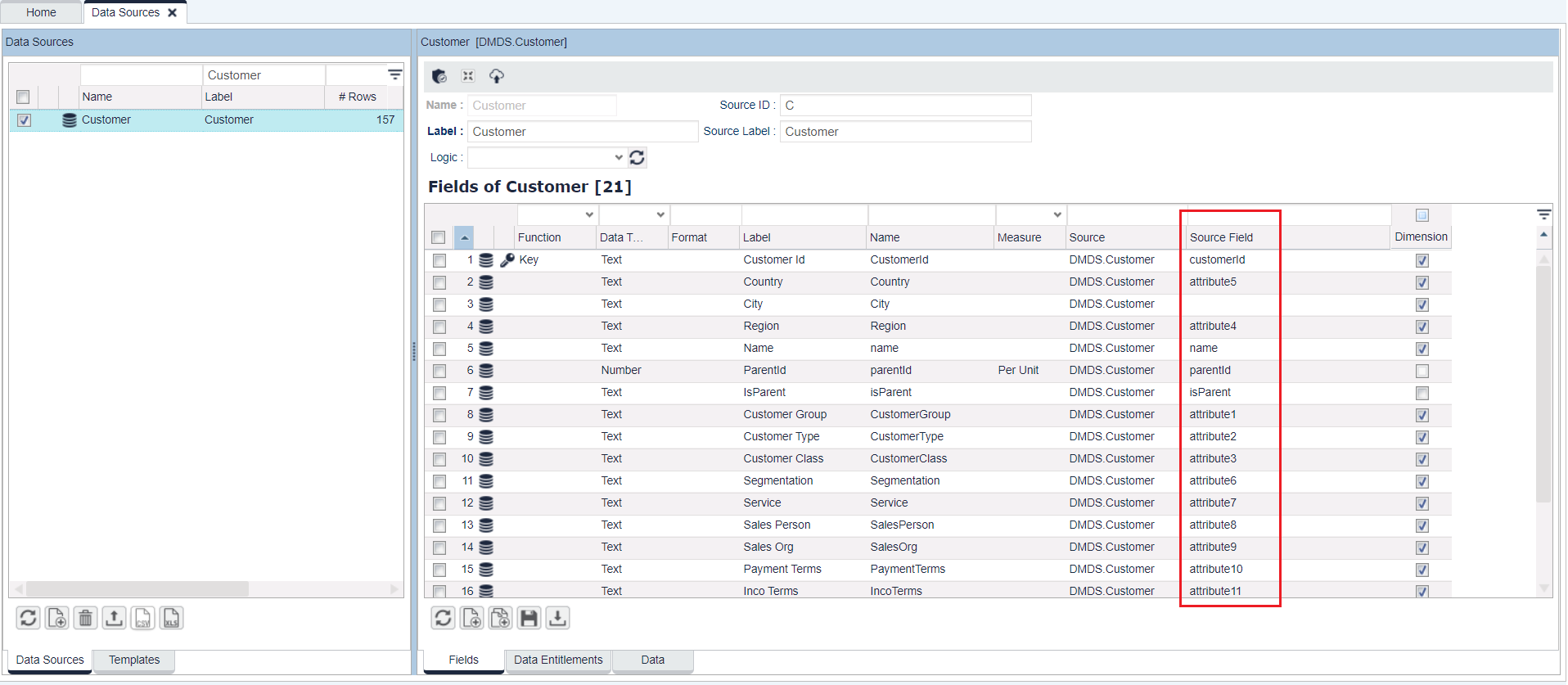

Note: You can get the source field in the Customer data source as shown below to fill in to the 'Name' column.

RM_ProductFieldMapping

This parameter maps the Product Master attribute (source field) with the Datamart field name.

warning You should check it and update based on the Product master structure in your partition.

Column Name	Description
Name	Attribute name (source field) in Product Master
Datamart Field Name	Map with a Field Name in Datamart
Description	Description of this mapping (if any)

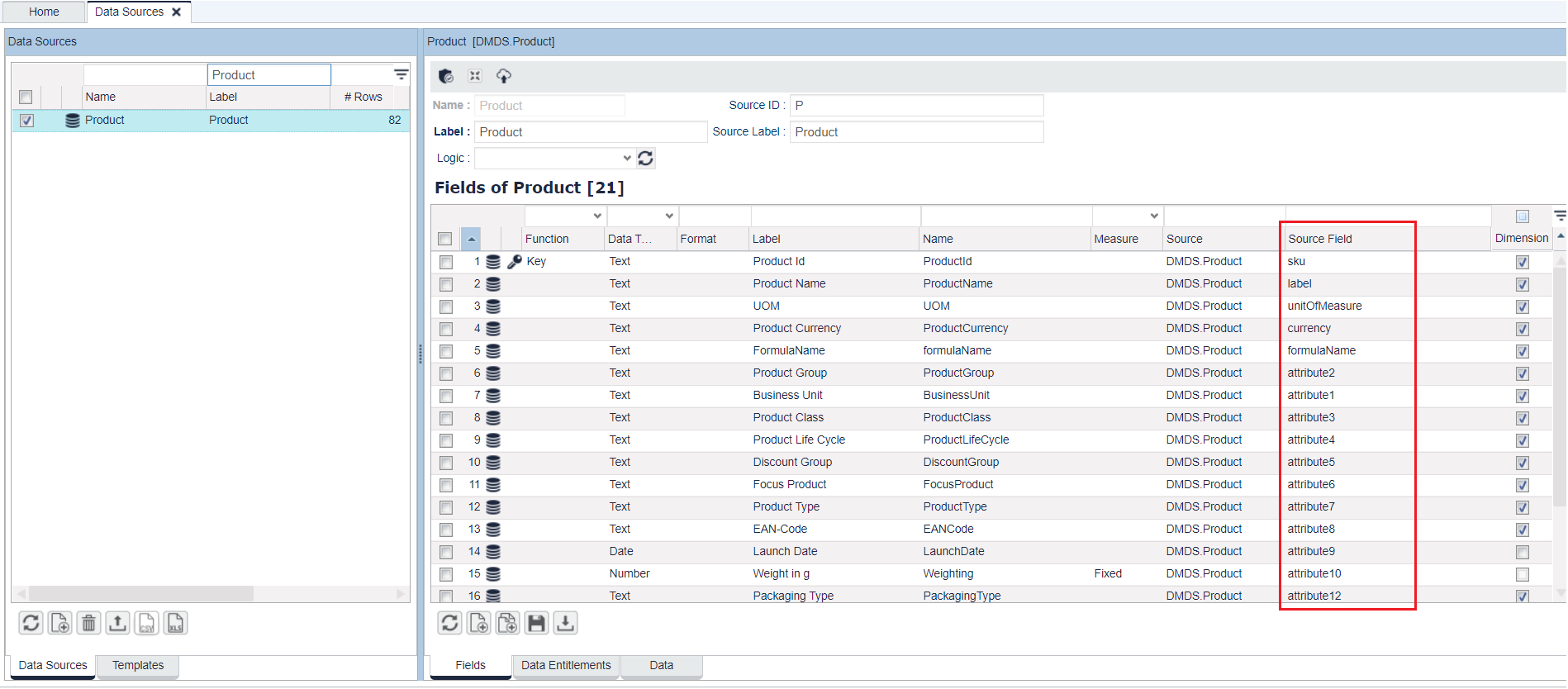

Note: You can get the source field in the Product Data Source as shown below to fill in to the 'Name' column.

Advanced Configuration Options

The element name "RM_AdvancedConfiguration" (to define configuration data) can be overridden on the rebate type level:

Name	Description
sourceType	Name of source types: Datamart, Data Source
sourceName	Name of Datamart / Data Source used to query and allocate the rebate value
baselineFieldName	Field name of Value Base which is used to calculate the base value
quantityFieldName	Field name of Quantity which is used to calculate the base value
pricingDateFieldName	Field name of the pricing date
customerIDFieldName	Field name of Customer ID
productIDFieldName	Field name of Product ID
customerFilterLogic	Logic name of Customer Filter Logic
customerSelectionLevel	Options: Header Level / Line Item Level
payoutDays	Number of days after the end date of the payment period when the user wants the payout
paymentPeriod	Options: Monthly / Quarterly / Semi-Annually / Annually If it is left empty, it will be populated on the line item level.
targetFor	Options: Payment Period / Annual
depositScheme	Options: Non-Cumulative / Cumulative

Sample of "RM_AdvancedConfiguration":

{
  "sourceType": "DataMart",
  "sourceName": "SC_TransactionData",
  "baselineFieldName": "InvoicePrice",
  "quantityFieldName": "Quantity",
  "pricingDateFieldName": "PricingDate",
  "rebateFieldName": "Rebates",
  "customerIDFieldName": "CustomerId",
  "productIDFieldName": "ProductId",
  "payoutDays": 1,
  "paymentPeriod": "Quarterly",
  "targetFor": "Payment Period",
  "depositScheme": "Non-Cumulative",
  "customerFilterLogic": "CustomerFilter_Logic",
  "customerSelectionLevel": "Line Item Level"
}

Rebate Calculation Feeder

Logic name: RebateRecordCalculationFeeder
Finds and calculates rebate records.

Rebate Allocation Feeder

Logic name: RebateAllocationFeeder
Allocates a rebate value into a transaction Datamart.

Rebate Approval Workflow

It is done using the Approval Workflow Library. For details see Lookup Table Support in Conditions.
Rebate Agreement Approval Workflow
- Workflow logic name: RM_RebateAgreement
Rebate Record Approval Workflow
- Workflow logic name: RM_AgreementRecord
