In order to update the SD from a version before 13.0 to a version 13.0++ you need to change a few things. We changed the way how strategies / blockly workspace is stored.
There are some noticeable changes:
-
Strategy Selection is removed from SD. It needs to be done in the Company Parameter directly
-
Strategies can have “Status” and there is a “Version History”
-
Deployed Strategies / Lookups cannot be deleted for audit reasons
-
There is only a “name”, not a Label/Name concept. Name cannot have special characters
-
SD advanced configuration now expects datatype “string” instead of previously “String”
User Roles
Strategy Designer now comes with specific User Roles:
-
Price Setting → View Strategy Designer
-
Price Setting → Manage Strategy Designer
-
Price Setting → Administer Strategy Designer
Change in the advanced property:

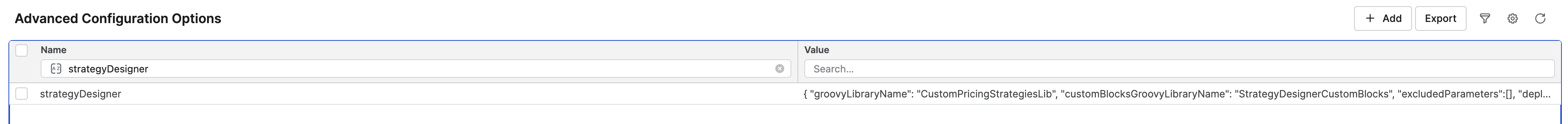

The advanced property for Strategy Designer has to be renamed to “strategyDesigner”.
Most probably it is called “pfxExternalApp_visual_configuration_strategy_designer” in your older version.
The JSON is a bit different now. Your JSON will probably look like this:
{
"name": "strategy-designer",
"label": "Strategy Designer",
"url": "https://apps.pricefx.com/visual-configuration/1-0-1/#/strategy-designer",
"businessRole": "StrategyDesigner",
"configuration": {
"advancedConfigurationStateEntry": "visual_configuration_strategy_designer_state",
"strategyDefinitionTable": "StrategyDefinition",
"strategySelectionTable": "GlobalStrategySelection",
"priceSettingDimensionsTable": "PriceSettingDimensions",
"priceListLogicName": "IndependentPriceListLogic",
"groovyLibraryName": "CustomPricingStrategies"
}
}
You need to “unwrap” the “configuration” part only. The rest is not needed anymore.
It has to look like this now:
{
"groovyLibraryName": "CustomPricingStrategiesLib",
"customBlocksGroovyLibraryName": "StrategyDesignerCustomBlocks",
"excludedParameters":[],
"deploymentLogicName": "StrategyDesignerFillPPTables",
"livePreviewDependencyLevel": "Global",
"dependencyConfigurationTable": "DependencyConfiguration",
"priceListLogicName": "IndependentPriceListLogic"
}
Don´t worry about the exact content. It might differ a bit depending on what version of PSP you have deployed.
Additional Parameters “String” → “string”
If you have configured additional parameters of type “String”, you need to change the type from “String” to “string”.
"additionalParameters": {
"ValidFromString": {
"label": "Valid From (String)",
"type": "string"
},
Import the Strategies / Lookups to JCS
If you browse to SD now the strategies will be “lost”. Don´t worry, they are not lost, the new SD just does not look at the right place.
First, you need to locate the AP “visual_configuration_strategy_designer_state”. This is a JSON representation of all your lookups and strategies.
It should look like this:
{
"strategies": [
{
"label": "StrategyTest",
"name": "StrategyTest",
"storageStatus": "DRAFT",
"json": {
"blocks": {
"languageVersion": 0,
"blocks": [
{
"type": "strategy_custom",
"id": "root",
"x": 5,
"y": 5,
"deletable": false,
"extraState": {
"variablesConnected": false
},
"fields": {
"NAME": "Strategy",
"VARIABLES_VISIBLE": false
},
"inputs": {
"PRICE": {
"block": {
"type": "math_arithmetic",
"id": "B}NpVix*#A1M+cTbCe5l",
"fields": {
"OP": "ADD"
},
"inputs": {
"A": {
"block": {
"type": "var_productCost",
"id": "%i}};R39_dFKCWe%!}wT"
}
},
"B": {
"block": {
"type": "use_data_lookup",
"id": "H4.Xt9HBbNmh+wSH_}=t",
"extraState": {
"selectedDataLookup": "AdvancedLookupTest",
"selectedField": "attribute1",
"outputType": "Number",
"selectedOperator": "avg"
},
"fields": {
"OPERATOR": "avg",
"FIELD": "attribute1",
"DATA_LOOKUP": "AdvancedLookupTest"
}
}
}
}
}
}
}
}
]
}
}
}
],
"customLookups": [
{
"label": "AdvancedLookupTest",
"name": "AdvancedLookupTest",
"storageStatus": "ACTIVE",
"json": {
"blocks": {
"languageVersion": 0,
"blocks": [
{
"type": "data_lookup",
"id": "root",
"x": 5,
"y": 5,
"deletable": false,
"extraState": {
"typeCode": "PX",
"filterToggled": true,
"sortToggled": false,
"rangeLookupEnabled": false,
"valueLookupEnabled": false,
"filterAdded": true,
"sortAdded": false,
"tableName": "ProductCosts"
},
"fields": {
"type_code": "PX",
"table_name": "ProductCosts",
"apply_filter": true,
"apply_sort": false
},
"inputs": {
"input_filter": {
"block": {
"type": "and_or_dynamic",
"id": "/mR/%2D`C+*In3CPJ_a#",
"fields": {
"OPERATOR": "and"
},
"inputs": {
"VALUE": {
"block": {
"type": "data_lookup_condition_PX_ProductCosts",
"id": "IeGpIH?$J,Sd*#yno$x?",
"fields": {
"FIELD": "sku",
"OPERATOR": "equal"
},
"inputs": {
"VALUE": {
"block": {
"type": "p_sku",
"id": "!VEKv79:W4Qzl9F3f3MJ"
}
}
}
}
}
}
}
}
}
}
]
}
}
}
]
}

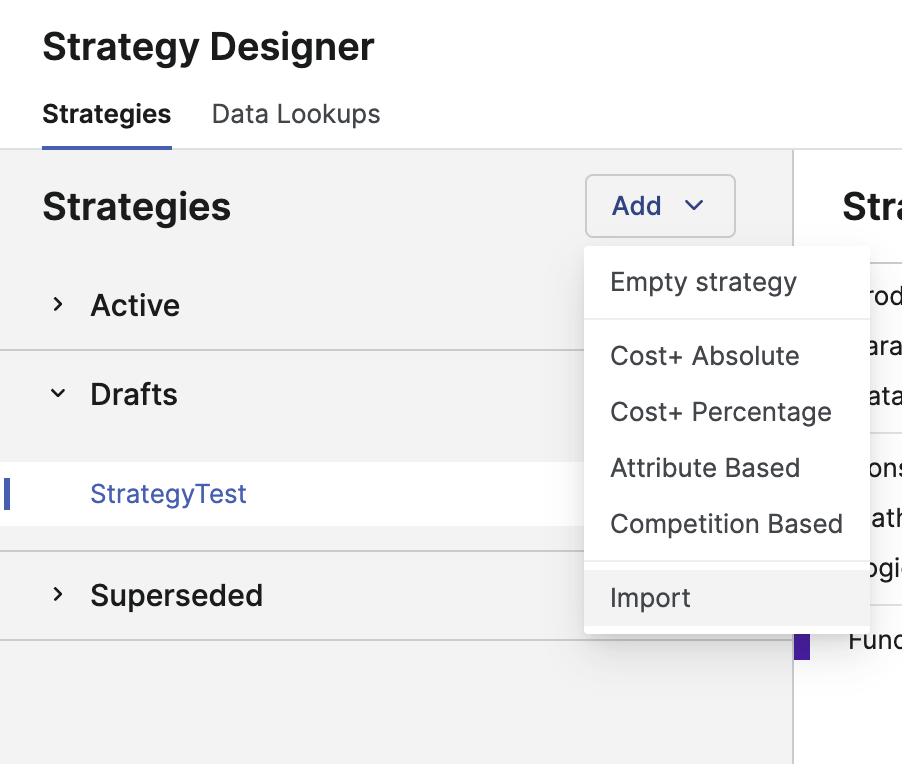

You need to copy this JSON, and use the “Import” functionality in Strategy Designer:
After the import your Lookups & Strategies should be available again. You can deploy them now 🙂
