Role of Product Extension Tables
The role of the Product Extension (PX) table is to hold values of product attributes, which generally meet one of these conditions; either did not fit within the maximum size of the Product table, or contain values that also depend on some other dimension (ie. time, date, etc)
Configure the Products Extension Table
Our goal is to use PlatformManager to upload our CSV data into the Product Extension Table. First, you’ll need to create and then configure the columns in the extension table to match column in the CSV file that will be uploaded.
-

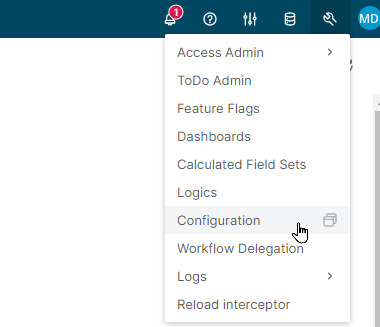

Click on the configuration icon (it looks like a wrench) and select the Configuration option:
NOTE: Product extension tables must be created explicitly within our partitions unlike master tables that already have a default configuration.

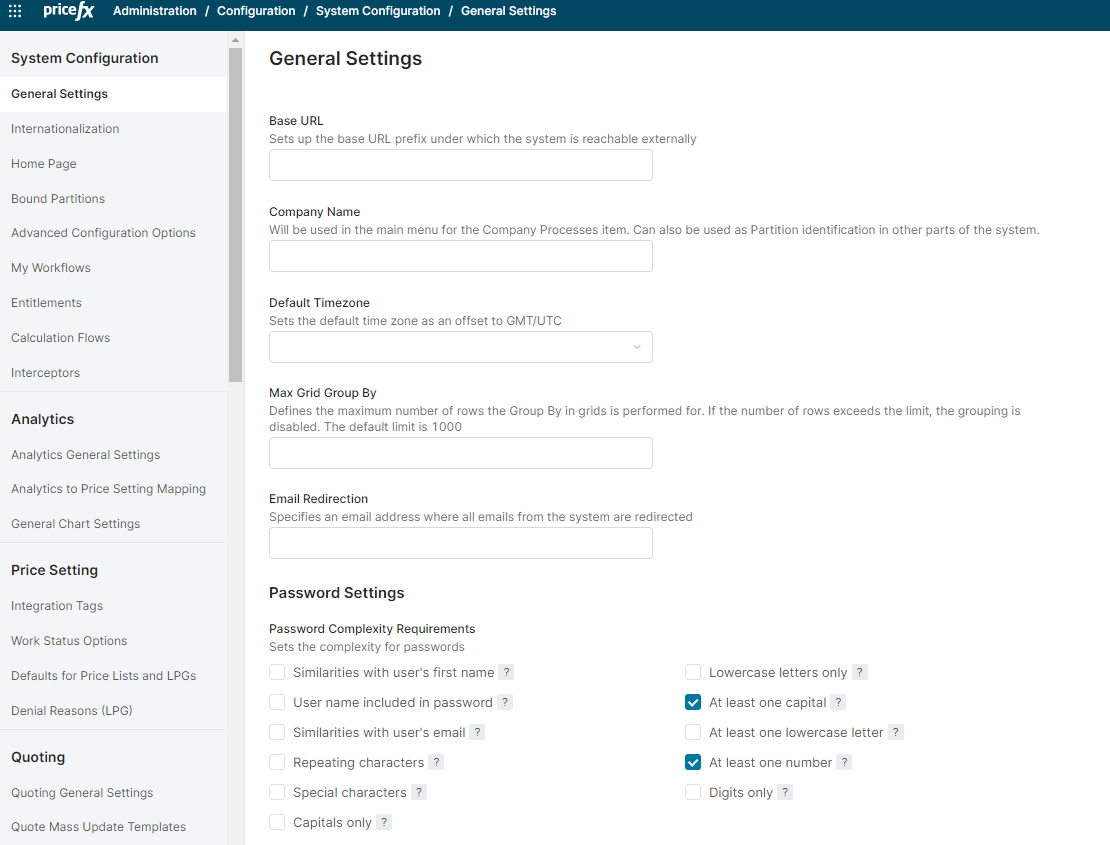

2. The Pricefx Configuration panel for our partition will appear:

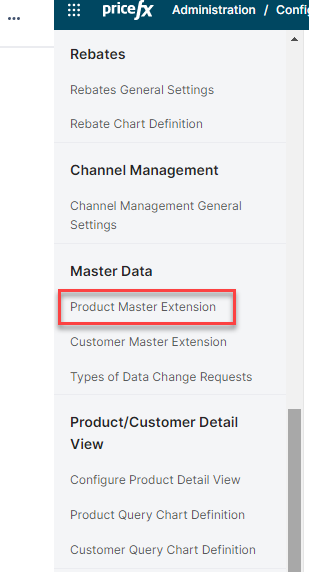

3. Scroll down to the Master Data area and choose the Product Master Extension option:

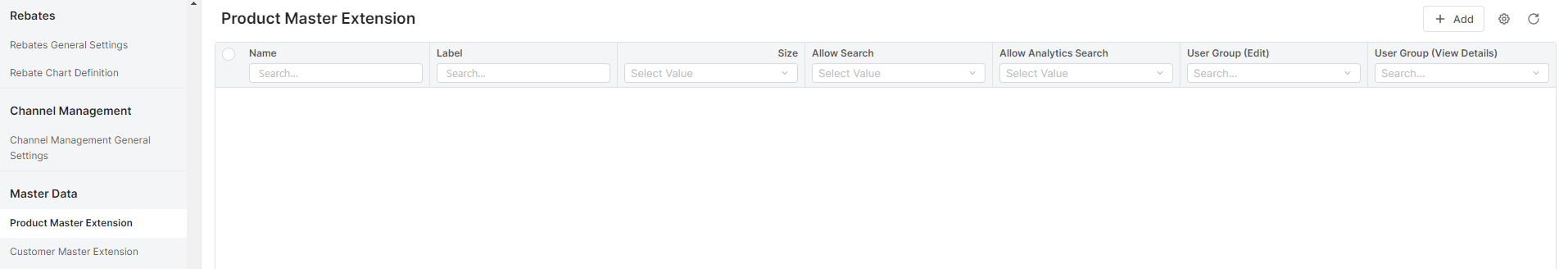

3. The Product Master Extension panel will appear and it is probably blank since we started with an empty partition.

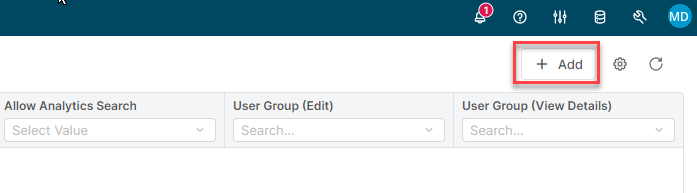

4. To create a new Product Extension table, click on the Add button:

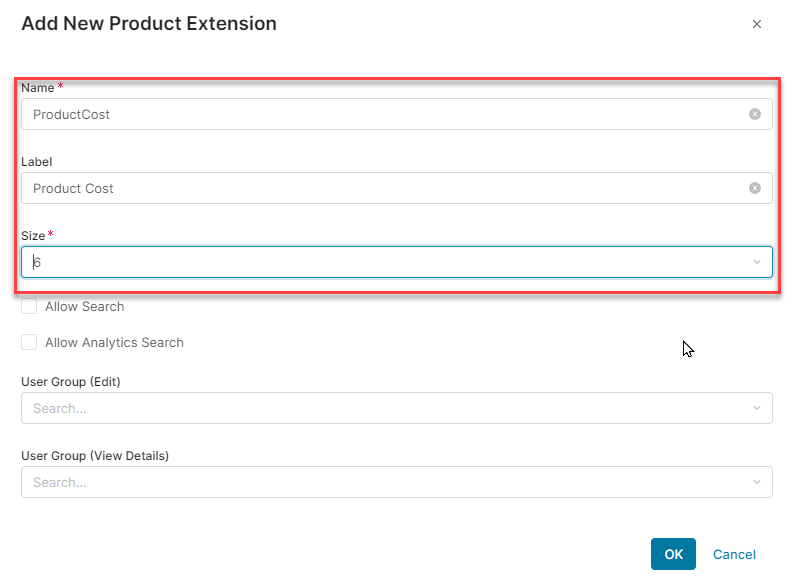

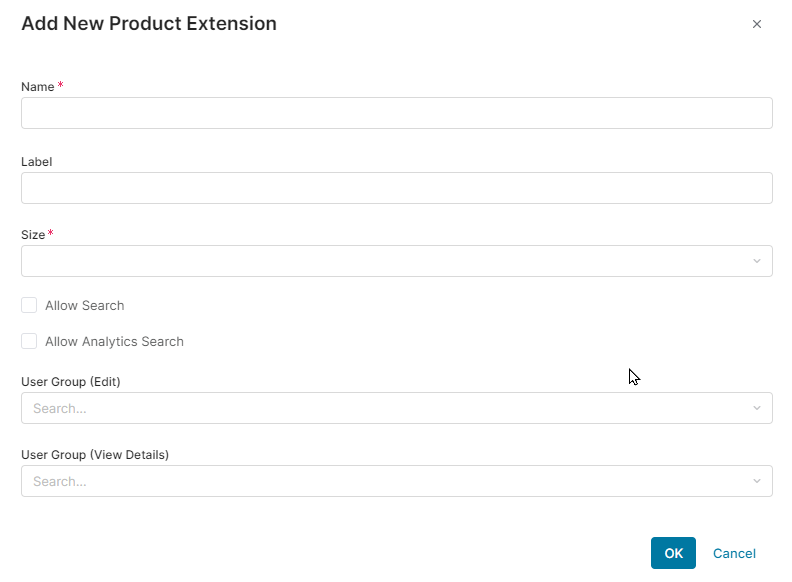

5. This will launch the Add New Product Extension dialog:
6. Update the attributes for our product extension table as shown below:
From this layout we can see that our table is called ProductCost and a Size value of 6.
NOTE: The Size parameter will refer to the number of attribute columns that our extension table can have. The value is predetermined to be 3, 6, 8, 10, 20, 30 or 50. You should select the one that is closest to the number attributes you would expect to have.
7. Click OK button.

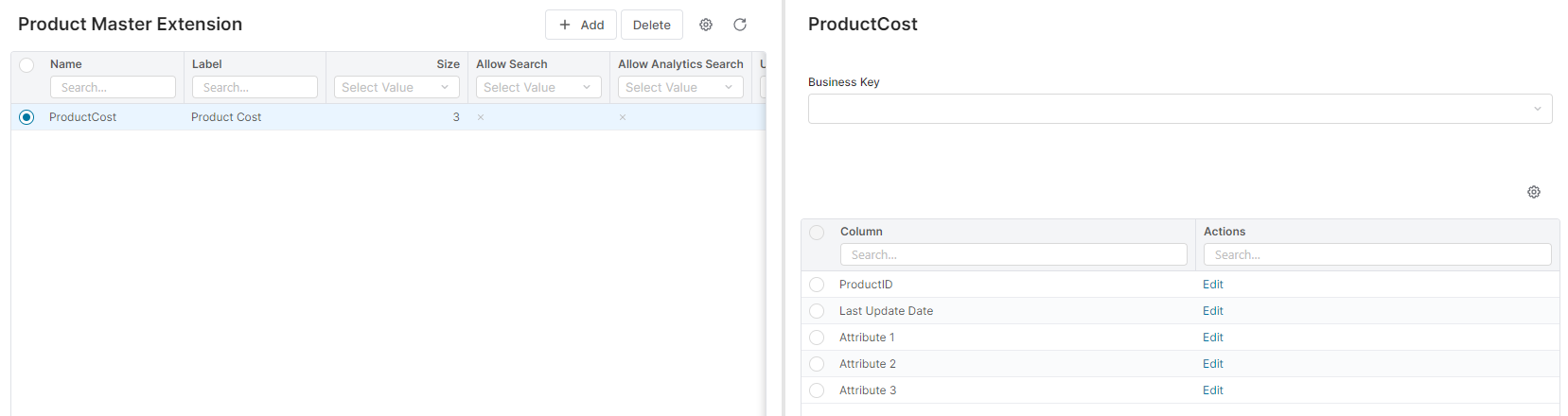

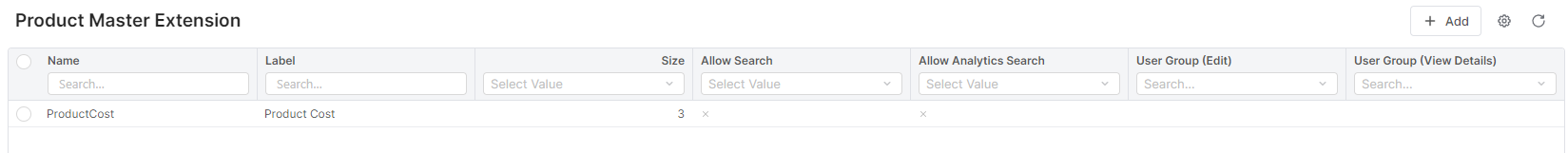

8. Next. to update the Attribute columns, simply select our ProductCost table:
NOTE: Since we selected a Size option of 3, there are exactly three Attribute columns in our extension table. We don’t need to use all of them, only what is needed.

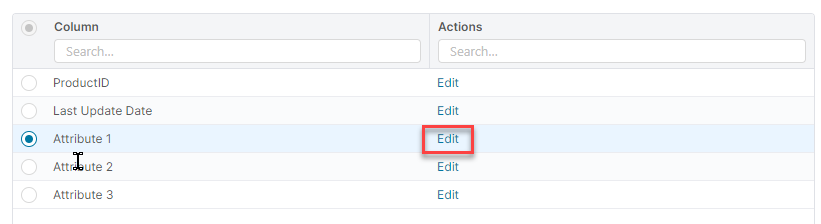

8. Click on the Edit option for Attribute1:

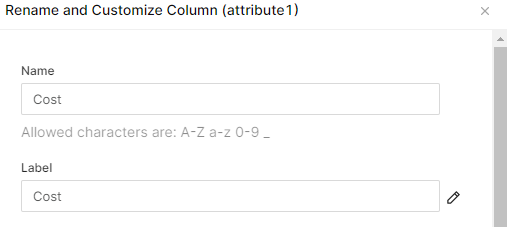

9. Set the Name and Label to Cost:
10. Set the Data Type to Real and Format Type to Money(EUR):
11. Click OK button.

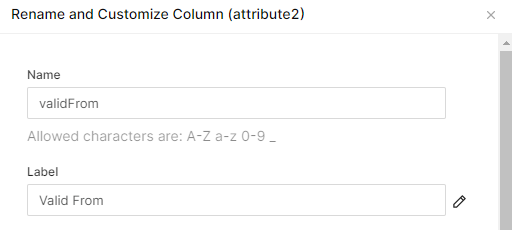

12. Click on Edit option for Attribute 2 and set Name and Label to the following:
13. Set the Data Type to Date and click OK button.

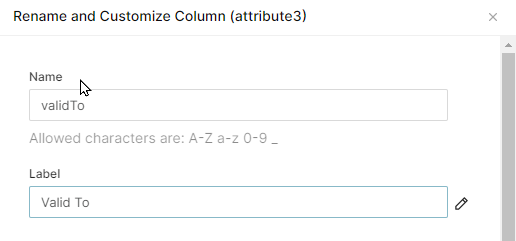

14. Click on Edit option for Attribute 3 and set Name and Label to the following:
15. Set the Data Type to Date and click OK button.

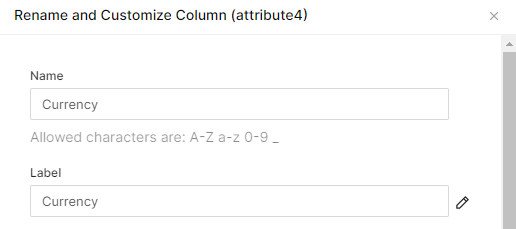

16. Click on Edit option for Attribute 4 and set Name and Label to the following:
17. Set the Data Type to String and click OK button.

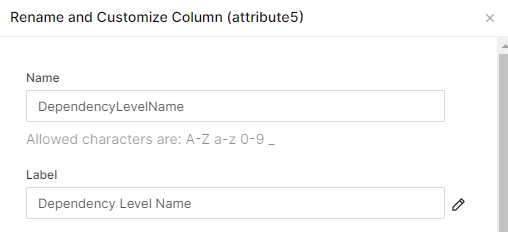

18. Click on Edit option for Attribute 5 and set Name and Label to the following:
19. Set the Data Type to String and click OK button.
